• Air conditioning, rear (Requires (TR9) auxiliary lighting. Includes (C36) rear heater, (U80) digital compass and (KG3) 145-amp alternator. Standard on *G33706 models only.)
• Air conditioning, single-zone manual
• Assist handle, front passenger
• Compass, 8-point digital located in the Driver Information Center (Included and only available with (C69) rear air conditioning.)
• Cruise control (Included and only available with (ZQ3) Convenience Package, tilt-wheel and cruise control.)
• Defogger, front and side windows
• Floor covering, full-length Black rubberized-vinyl
• Headliner, cloth
• Heater, rear auxiliary (Included with (C69) rear air conditioning. Standard on *G33706 models only.)
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches
• Mirror, inside rearview manual day/night
• Oil life monitor
• Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration (Standard on *G23406, *G33406, and *G33706 models only.)
• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Theft-deterrent system, vehicle, PASS-Key III
• Warning tones, headlamp on and key-in-ignition

• Alternator, 145 amps (Included with (C69) rear air conditioning.)
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Rear-wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar (Standard and only available on *G***06 models.)
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Child seat anchors all three passenger rear seats have four anchors and two tethers
• Daytime Running Lamps
• Door beams, steel-side
• StabiliTrak, traction assistance and vehicle stability enhancement system

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode and internal transmission oil cooler (STD) Includes external engine oil cooler.

CONVENIENCE PACKAGE, POWER WINDOWS AND DOOR LOCKS

• (Includes (AU3) power door locks and (A31) power windows.

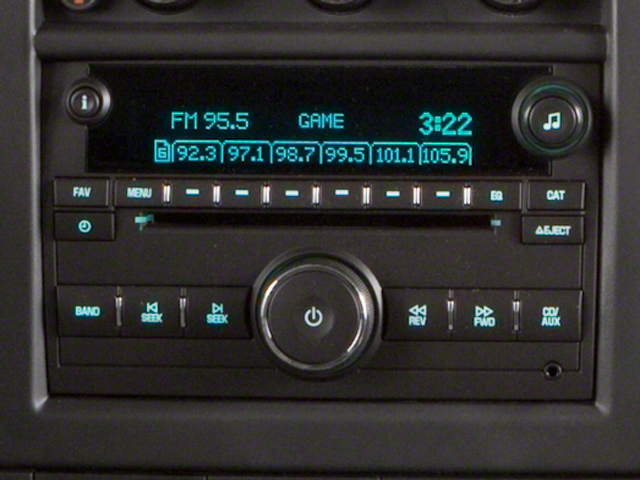

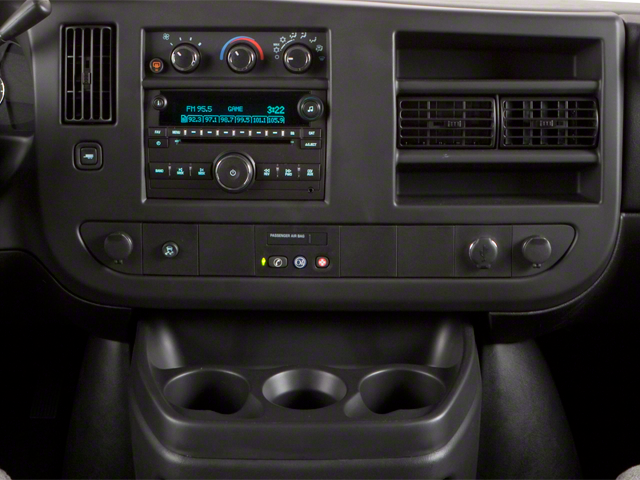

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan
• digital clock and 2 front door speakers (STD)

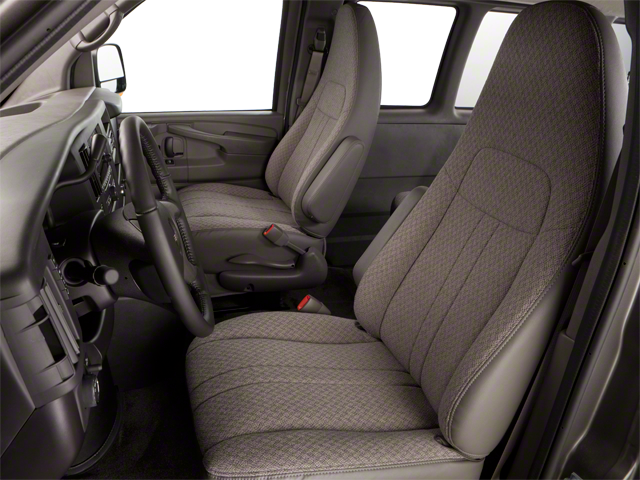

SEATS, FRONT BUCKET WITH VINYL TRIM

• and outboard head restraints (STD)

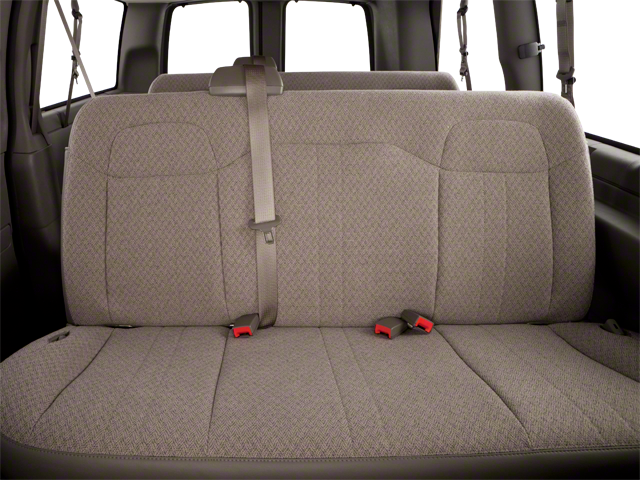

SEATING, 15-PASSENGER, (2-3-3-3-4 SEATING CONFIGURATION)

• 4-passenger seat is a 50/50 split
• 2-piece configuration

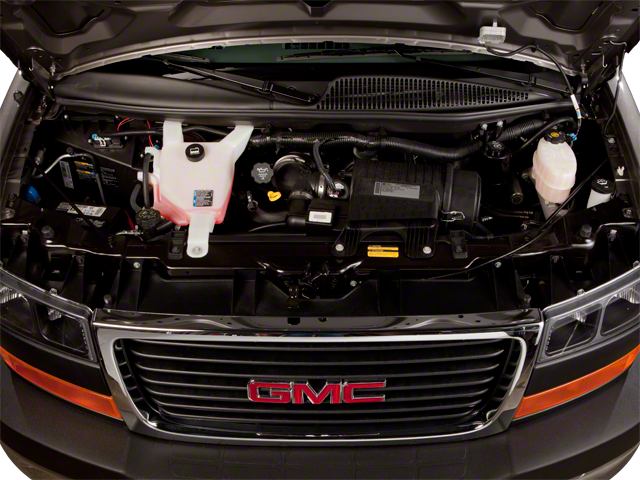

ENGINE, VORTEC 6.0L V8 SFI FLEXFUEL

• (323 hp [240.8 kW] @ 4600 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (STD) Includes external engine oil cooler.

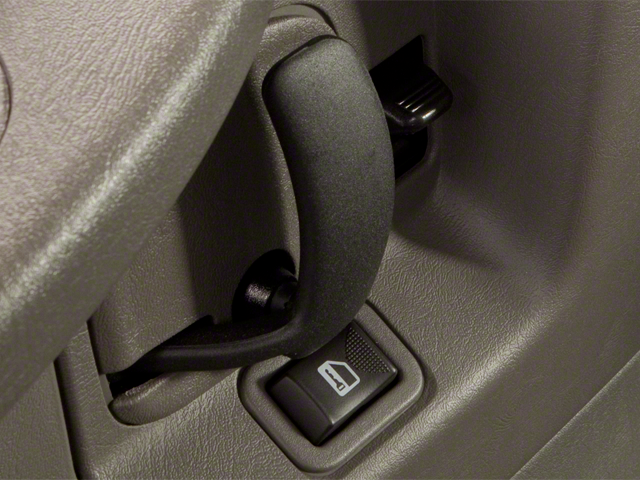

DOOR LOCKS, POWER

• with lock-out protection

LS PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE, BLACK, MANUAL-FOLDING

• with integrated turn signal indicators

PAINT, SOLID

• (STD)

• REAR AXLE 3.42 RATIO
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode and internal transmission oil cooler (STD) Includes external engine oil cooler.
• CONVENIENCE PACKAGE POWER WINDOWS AND DOOR LOCKS (Includes (AU3) power door locks and (A31) power windows.
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan digital clock and 2 front door speakers (STD)
• SEATS FRONT BUCKET WITH VINYL TRIM and outboard head restraints (STD)
• SEATING 15-PASSENGER (2-3-3-3-4 SEATING CONFIGURATION) 4-passenger seat is a 50/50 split 2-piece configuration
• ENGINE VORTEC 6.0L V8 SFI FLEXFUEL (323 hp [240.8 kW] @ 4600 rpm 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (STD) Includes external engine oil cooler.
• DOOR LOCKS POWER with lock-out protection
• LS PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SUMMIT WHITE
• WINDOWS POWER
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE BLACK MANUAL-FOLDING with integrated turn signal indicators
• PAINT SOLID (STD)
• MEDIUM PEWTER CUSTOM VINYL
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• Vinyl Seats
• Bucket Seats
• Rear Bench Seat
• 3rd Row Seat
• Power Outlet
• Tire Pressure Monitor
• Trip Computer
• Cruise Control
• Adjustable Steering Wheel
• Cruise Control
• Immobilizer
• A/C
• A/C
• Rear A/C
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Cargo Area Dimensions
• Cargo Area Length : Floor to Console (in)
• Cargo Area Length : Floor to Seat 1 (in)
• Cargo Area Length : Floor to Seat 2 (in)
• Cargo Area Length : Floor to Seat 3 (in)
• Cargo Area Length : Floor to Seat 4 (in)
• Cargo Area Width : Beltline (in)
• Cargo Box (Area) Height (in): 51.9
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume to Seat 1 (ft³): 252.6
• Doors
• Side Door Type: Swing-out
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 145
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 7.7
• Ground to Top of Load Floor (in): 27.3
• Height, Overall (in): 82.0
• Length, Overall w/rear bumper (in): 244.1
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): 49.4
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Step Up Height - Front (in): 19.3
• Step Up Height - Side (in): 20.0
• Wheelbase (in): 155.0
• Width, Max w/o mirrors (in): 79.4
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid Inboard Rail
• Interior Dimensions
• Fifth Head Room (in): 38.1
• Fifth Hip Room (in): 63.2
• Fifth Leg Room (in): 36.4
• Fifth Shoulder Room (in): 62.7
• Fourth Head Room (in): 38.1
• Fourth Hip Room (in): 59.6
• Fourth Leg Room (in): 39.8
• Fourth Shoulder Room (in): 68.3
• Front Head Room (in): 40.2
• Front Hip Room (in): 65.5
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Passenger Capacity: 15
• Second Head Room (in): 38.5
• Second Hip Room (in): 66.0
• Second Leg Room (in): 34.8
• Second Shoulder Room (in): 68.9
• Third Head Room (in): 38.6
• Third Hip Room (in): 64.4
• Third Leg Room (in): 37.6
• Third Shoulder Room (in): 63.5
• Steering
• Steering Ratio (:1), At Lock: 17.2
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 54.5
• Summary
• Body Code: ZW9
• Body Style: 3500 155" WB
• Vehicle Name: GMC Savana Passenger
• Suspension
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Coil Springs
• Suspension Type - Rear: Multi-leaf
• Tires
• Front Tire Capacity (lbs): 2205
• Front Tire Order Code: XHH
• Front Tire Size: LT245/75R16E
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: YHH
• Rear Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZHH
• Spare Tire Size: LT245/75R16E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Maximum Trailering Capacity (lbs): 9300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1395
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9300
• Vehicle
• Rear Door Type: Panel
• Weight Information
• Curb Weight - Front (lbs): 3284
• Curb Weight - Rear (lbs): 2967
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Gross Combined Wt Rating (lbs): 16000
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 16 x 6.5
